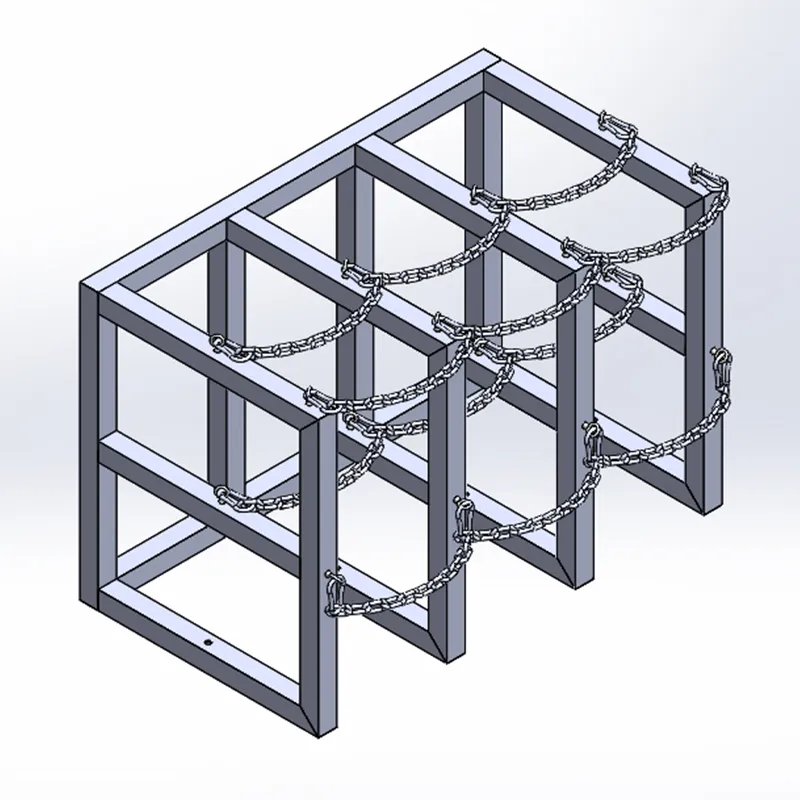

Gas cylinder barricade rack is fabricated out of tube steel 2” x 2”. It can accommodate cylinders up to 12” dia. and can hold 6 cylinders. The cylinders are encased with seam welded tube steel and secured at front using 2 levels of chains and snaps. Holes are provided at bottom leg for permanently anchoring to floor (Please order anchor bolts separately). Helps comply with , , , and .
Color:
Gray color readily available in stock, other custom colors offered, please call to check availability.
Lead time:
Product is made-to-order and ships 2-3 weeks from order date.
- Cylinder capacity: 6
- Cylinder diameters supported: Up to 12"
- 2" square steel tube continuously seam welded
- Powder coated finish
- Two levels of welded steel chains with snaps
- 4 Pre-drilled 0.531" diameter floor mounting holes
- Meets high seismic hazard zone requirements when installed properly
- , , , and compliant when used properly
- Dimensions: 44" wide x 26" deep x 30" high
- Product Weight: 165 lbs.
- Made in the USA
Pick a location free from vehicle traffic, excessive heat and electrical circuits. It should be a dry and well-ventilated area.
Secure rack to the ground/floor using the appropriate hardware for the material. Typical size bolt is 1/2" by 5 1/2" size. Anchor bolts are not included. Each rack has pre-drilled 0.531" holes in each arm for mounting to ground.
It is recommended that a site survey be completed by the authority having jurisdiction to determine the suitability of the barricade racks at that location and to confirm all local regulations are being followed.
